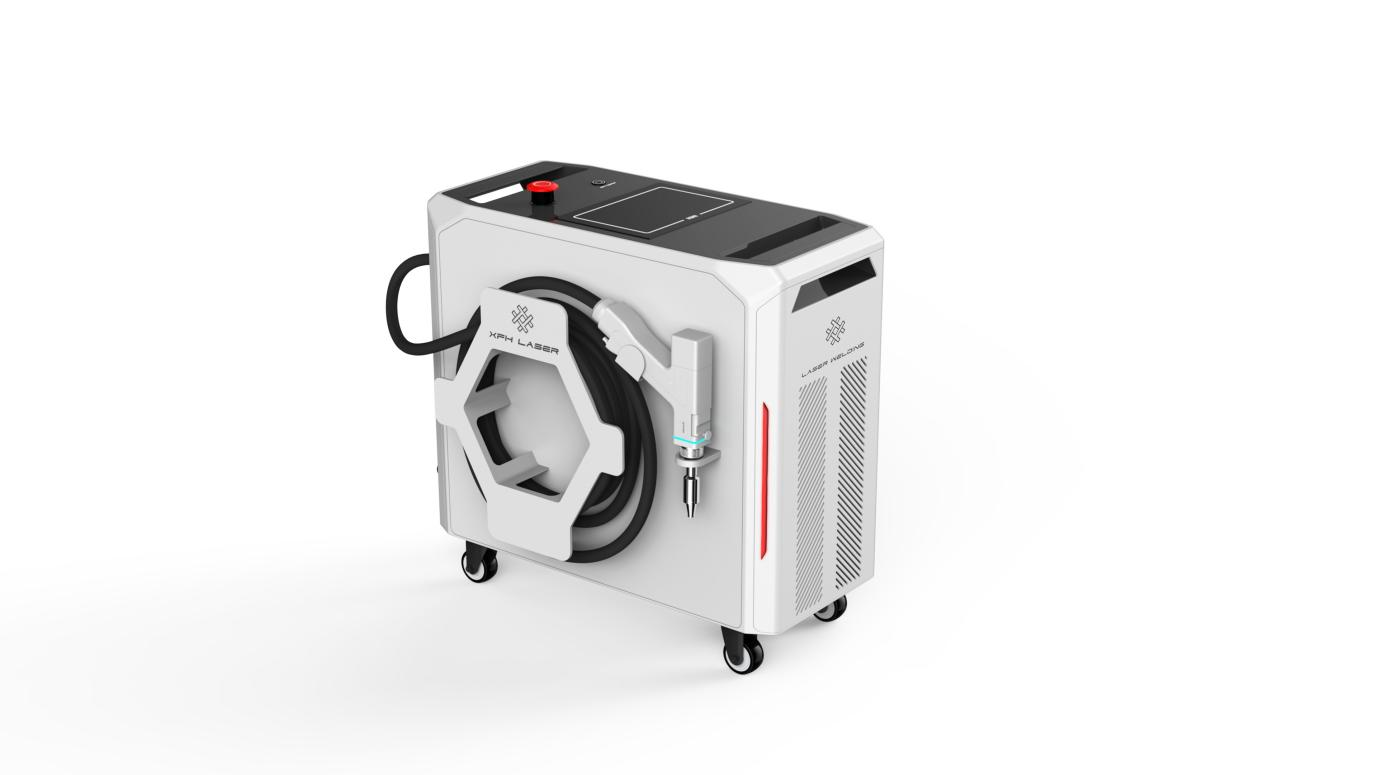

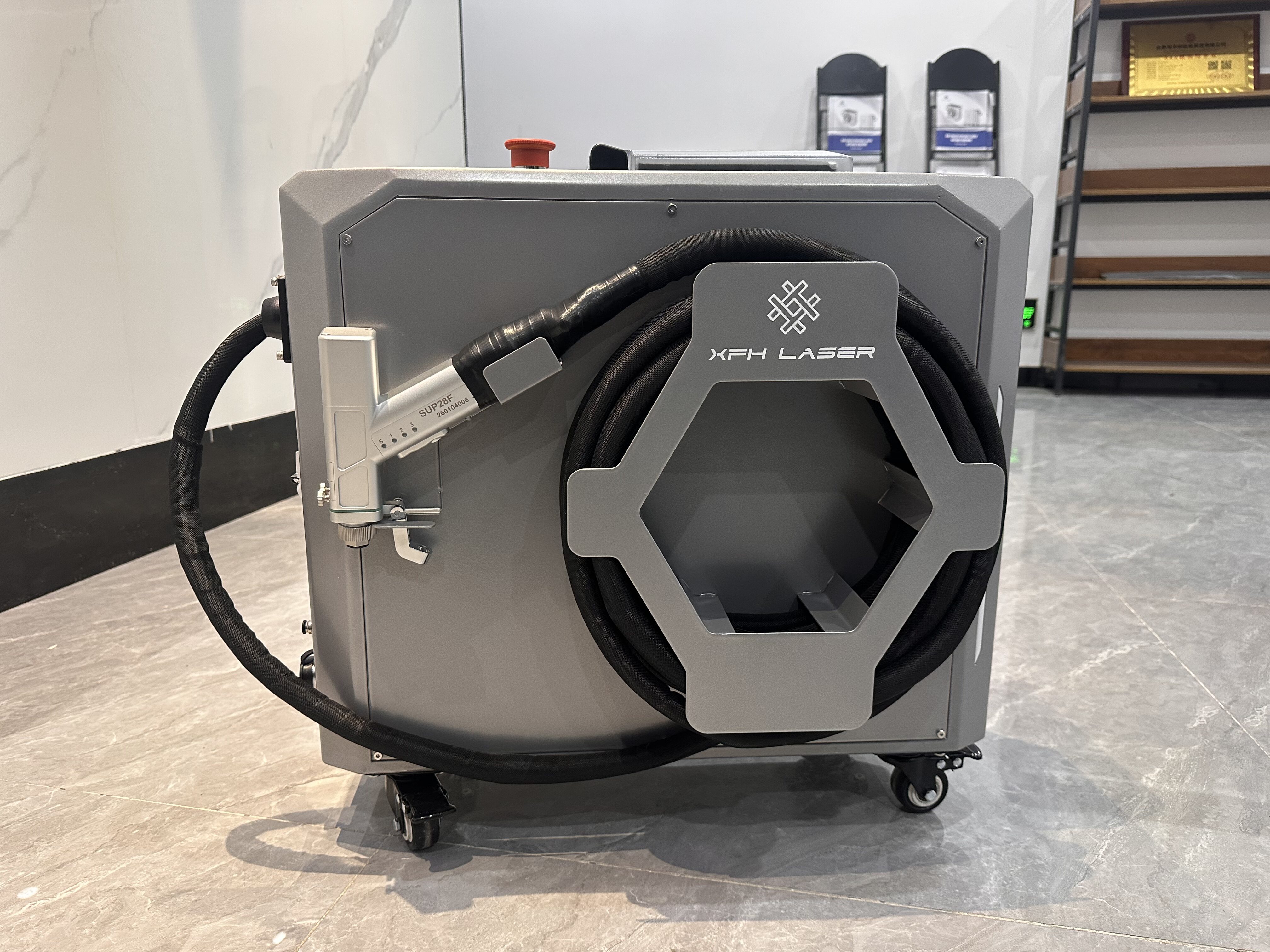

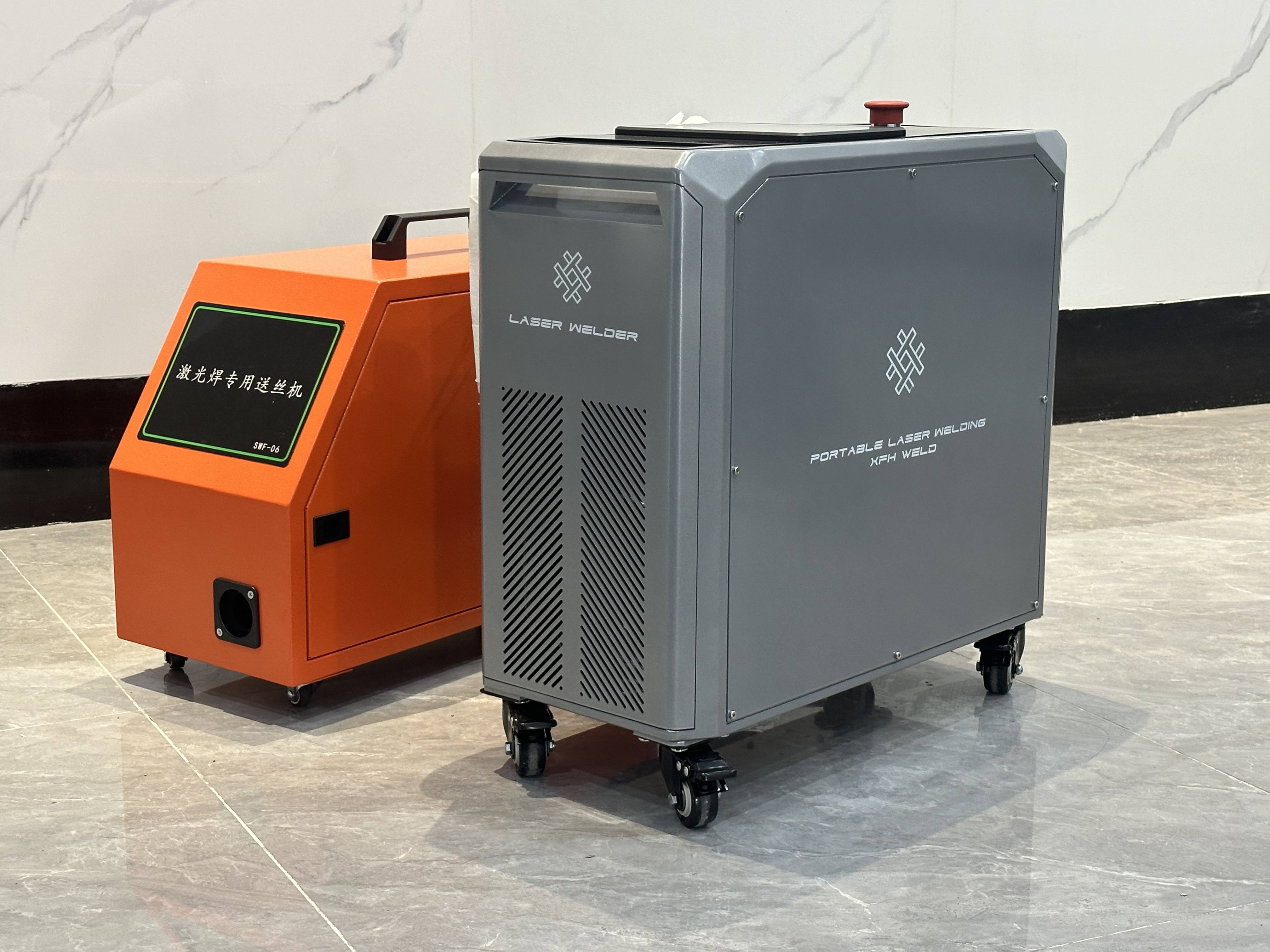

Portable Laser Welder – Compact and Flexible Solution for Modern Metal Welding
The Portable Laser Welder is a compact, handheld laser solution designed for flexible metal welding tasks in workshops and on-site environments. With its lightweight structure and air-cooled design, this system is easy to transport, quick to install, and simple to operate, making it especially suitable for maintenance work, small-scale fabrication, and mobile welding applications.
Compared with conventional welding methods, laser-based welding offers faster processing speed, cleaner seams, and significantly lower heat input. This reduces material distortion and post-weld finishing while improving consistency and overall productivity. The portable design allows users to apply advanced laser technology without the space and infrastructure requirements of large industrial systems.
4-in-1 Handheld Laser System for Multiple Applications
This handheld laser system integrates four practical functions into one compact unit, allowing users to handle multiple processes with a single piece of equipment.
Laser Welding
The core function of this system is laser welding. It delivers stable output and precise energy control, producing smooth and strong weld seams with minimal spatter. The process is well suited for thin and medium metal sheets and is easier to master than traditional TIG or MIG welding, helping reduce operator dependency.
The integrated cutting capability allows quick trimming of thin metal sheets and small parts. This function is ideal for edge correction, joint preparation, and small customization tasks, eliminating the need to switch between different machines during production.
Laser cleaning enables non-contact removal of rust, oil, paint, and oxide layers without damaging the base material. It is widely used for surface preparation before welding and for maintenance or restoration tasks where traditional abrasive methods are inefficient or harmful.
Weld Seam Cleaning
After welding, the same system can be used to clean weld seams, removing oxidation and discoloration. This improves surface appearance and is particularly useful for stainless steel products or visible weld joints where finish quality matters.
By combining these functions, the system reduces equipment investment, saves workspace, and improves workflow efficiency.
Power Options and Welding Capability
To meet different application needs, the system is available in several power levels:
Depending on the selected power, material type, and welding parameters, it supports welding thickness from 0.4 mm to 6 mm. Lower power configurations are suitable for precision work and thin materials, while higher power options provide stronger penetration for thicker sections.
This flexibility allows users to choose a configuration that matches their actual production requirements without unnecessary cost.
Air-Cooled Design for Easy Mobility and Maintenance
One of the key advantages of this compact laser system is its air-cooled design. Unlike water-cooled equipment, it does not require an external chiller, water circulation system, or complex installation.
This design offers several benefits:
-
Reduced machine size and weight
-
Easier transportation between job sites
-
Faster setup and commissioning
-
Lower maintenance requirements
As a result, the system is well suited for mobile welding, small workshops, and users who need a simple, plug-and-play solution.
Handheld Operation for Complex Shapes and Repair Work
The handheld laser head provides excellent flexibility, allowing operators to weld corners, edges, curves, and irregular shapes with ease. The ergonomic design helps reduce operator fatigue and improves control during long working hours.
This makes the system particularly suitable for repair work, custom fabrication, and applications where fixed automation is not practical.
Suitable Materials and Typical Applications
The laser system is compatible with a wide range of commonly used metals, including:
Typical applications include metal fabrication, equipment maintenance, kitchenware manufacturing, metal furniture, doors and windows, signage, and customized metal products.
Practical and Cost-Effective Choice
By integrating multiple laser processes into one compact unit, this solution helps users reduce equipment costs, simplify operations, and improve production efficiency. It is an ideal choice for businesses seeking flexibility, mobility, and reliable performance without large upfront investment.
Conclusion
The Portable Laser Welder offers a balanced combination of portability, versatility, and performance. With its handheld operation, air-cooled structure, and multi-function capability, it provides an efficient solution for welding, cutting, and cleaning tasks in both workshop and on-site environments. This system is well suited for modern metalworking applications that require flexibility, ease of use, and consistent results.
Frequently Asked Questions
How to Choose the Right Laser Welder Based on Material Thickness and Application
Choosing the right laser welder is a critical decision for manufacturers, fabricators, and workshops aiming to improve welding quality and production efficiency. Unlike traditional welding methods, laser welding offers higher precision, faster speeds, and cleaner weld seams—but only when the equipment is properly matched to the application. Among all selection criteria, material thickness and usage scenario are the two most important factors that directly influence performance, cost, and long-term reliability.
1. What is the most important factor when choosing a laser welder?
The most important factors when selecting a laser welder are material thickness and welding scenario. Material thickness determines the required laser power to achieve sufficient penetration and joint strength, while the usage scenario defines the machine configuration—such as handheld, workstation-based, or fully automated systems.
Ignoring either factor can result in poor weld quality, low efficiency, or unnecessary investment. A well-matched laser welder ensures consistent welds, minimal heat-affected zones, and stable long-term operation.
2. How does material thickness affect laser welder selection?
Laser power must be carefully matched to the thickness of the material being welded. Insufficient power leads to shallow penetration and weak joints, while excessive power can cause burn-through, distortion, or poor surface appearance.
General guidelines include:
-
0.5–3 mm thickness: Low to medium power laser welders are ideal for thin sheet metal, decorative components, and precision parts. These applications benefit from controlled heat input and smooth weld seams.
-
3–6 mm thickness: Medium power laser welders are commonly used for general metal fabrication, frames, brackets, and industrial components where strength and efficiency are both important.
-
6 mm and above: High-power laser welders are recommended for structural parts, thick plates, and heavy-duty welding tasks that require deeper penetration and strong joints.
Choosing the correct power range improves weld consistency and reduces post-weld processing.
3. Can one laser welder handle different thicknesses?
Yes, most modern laser welders feature adjustable power settings, allowing them to handle a range of material thicknesses. Operators can fine-tune laser power, welding speed, and focus position to suit different applications.
However, it is important to select the base laser power according to the most common thickness used in daily production. While a higher-power system can be adjusted downward, selecting a machine that is underpowered for your primary application will limit productivity and weld quality.
4. How does the welding scenario influence the choice?
The working environment and production method play a major role in laser welder selection:
-
Handheld laser welding: Ideal for flexible jobs, on-site repairs, small-batch production, and irregular workpieces. Handheld systems offer excellent maneuverability and are well suited for workshops and maintenance tasks.
-
Workshop or production welding: Suitable for repetitive welding of standardized parts with consistent thickness. These systems often use fixtures or workstations to improve accuracy and efficiency.
-
Industrial or heavy-duty welding: Requires higher laser power, stable cooling systems, and often automated or robotic solutions to support continuous operation and high throughput.
Matching the machine configuration to the application improves efficiency and operator comfort.
5. Does material type matter in addition to thickness?
Yes. Material type has a significant impact on laser welding performance. Stainless steel and carbon steel are relatively easy to weld and respond well to laser energy. In contrast, aluminum and copper reflect more laser energy and conduct heat rapidly, often requiring higher power or optimized parameters, even at the same thickness.
Understanding material properties helps ensure proper parameter selection and consistent welding results.
6. Is higher laser power always better?
No. While higher laser power increases penetration capability, it also raises equipment cost and the risk of overheating thin materials. Excessive power can lead to burn-through, excessive spatter, and poor surface finish.
The best choice is a laser welder that matches your actual thickness range and application needs, rather than simply selecting the highest wattage available.
7. What other features should I consider?
In addition to laser power, consider factors such as cooling system stability, welding head control, safety features, ease of operation, and suitability for continuous or intermittent use. These features directly affect reliability, productivity, and long-term operating cost.
Summary
To choose the right laser welder, start by identifying your material thickness range, then match it with your welding scenario and production requirements. A properly selected laser welder delivers stable penetration, clean weld seams, and high efficiency—without unnecessary cost or complexity.
1. What is the first thing to consider when choosing a laser cleaning machine?
Start by identifying your cleaning needs: the type of material (metal, plastic, rubber), the kind of contaminants (rust, paint, oil), and the size of surfaces you will clean most often. Matching machine specs to these requirements is essential for effective cleaning.
2. How does laser power affect the choice ?
Laser power determines how fast and effectively contaminants are removed:
- Low power (20–200W): Suitable for delicate surfaces, light rust, thin paint, or precision tasks.
- Medium power (200–500W): Ideal for general cleaning of rust, grease, and paint on moderate-sized parts.
- High power (500W+): Best for heavy-duty cleaning on thick coatings and large surfaces in industrial environments.
Choose the lowest power that safely handles your hardest cleaning task to avoid surface damage and excessive cost.
3. Should I choose handheld or stationary?
Handheld machines are great for flexible on-site cleaning, repairs, and variable workpieces. Stationary units or automated systems suit high-volume production, assembly lines, or fixed cleaning stations.
4. Is wavelength important?
Yes. The laser wavelength affects how well energy is absorbed by the material:
Matching wavelength to material improves cleaning efficiency and reduces heat damage.
5. What about pulse type and frequency?
Laser cleaners can operate in pulsed or continuous modes:
-
Pulsed lasers: Deliver bursts of energy, reducing heat impact — ideal for precision cleaning and sensitive surfaces.
-
Continuous wave lasers: Provide steady output, useful for bulk contaminant removal where thermal impact is less critical.
Pulse frequency and duration influence how aggressively contaminants are removed without harming the substrate.
6. How does production volume influence my choice?
Always consider how much cleaning your operation requires over time.
7. What safety and support features should I look for?
Ensure the machine has proper safety measures (interlocks, shielding), cooling systems to manage heat, and quality support from the supplier for training, maintenance, and repairs. Good safety design and after-sales service reduce risk and downtime.
8. Do I need to consider long-term costs?
Yes — look beyond the purchase price. Factor in operational costs like energy consumption, maintenance, consumables (filters, optics), and downtime costs. A machine that is inexpensive upfront but costly to maintain can reduce overall value.
9. Is testing important before buying?
Absolutely. Testing with your materials and contaminant types helps verify cleaning speed, power sufficiency, and surface impact. This practical step prevents mismatches between specifications and real-world performance.
10. What’s the best way to balance performance and cost?
Choose a machine that meets your heaviest cleaning need without over-specifying. For most general industrial tasks, a mid-range power laser cleaner (200–500W) balances cost, flexibility, and capability. For specialized tasks, adjust power, configuration, and automation accordingly.
Final Thoughts
Choosing the right laser cleaning machine is not only about comparing technical specifications—it’s about selecting a solution that truly matches your cleaning application, production environment, and long-term operational goals. A well-selected laser cleaning machine can significantly improve cleaning efficiency, protect the base material, and reduce manual labor and maintenance costs over time.
Before purchasing a laser cleaning machine, carefully evaluate how it will be used in real production. Consider whether your cleaning tasks are occasional or continuous, whether you need a handheld laser cleaning machine for mobility, or a stationary laser cleaning machine for fixed workstations. Surface quality requirements, cleaning speed, and repeatability should all influence your final decision.
It is also important to work with a supplier that can provide application testing, technical guidance, and reliable after-sales support. A stable laser cleaning machine with proper training and service support ensures consistent performance and minimizes downtime.
By balancing laser power, configuration, safety features, and total ownership cost, you can choose a laser cleaning machine that delivers both performance and value. The right laser cleaning machine will not only solve current cleaning challenges but also support future production expansion and evolving industrial cleaning needs.
